Diameter size: 3.5, 4.0, 5.5, 13.5mm

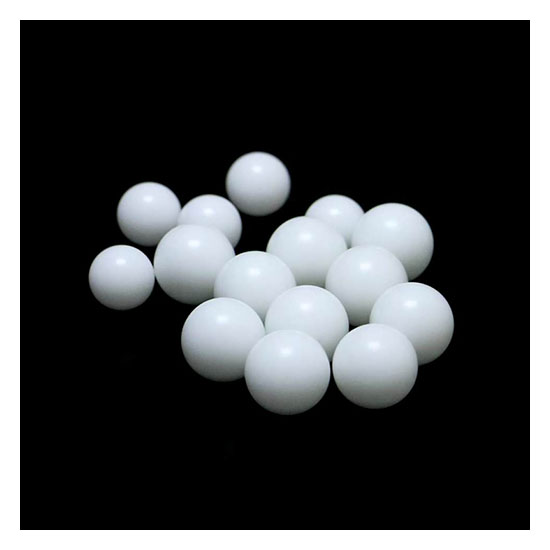

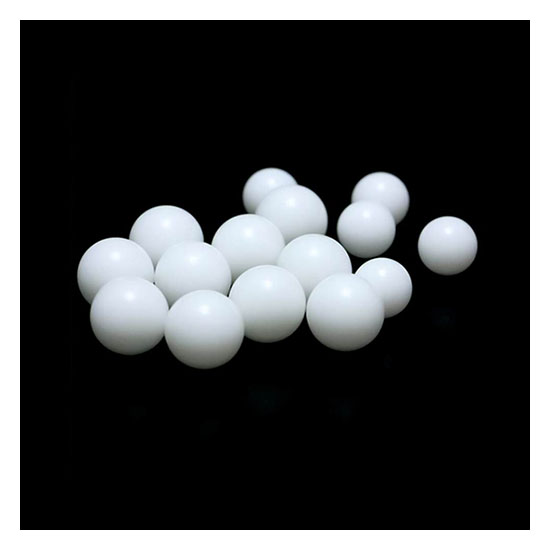

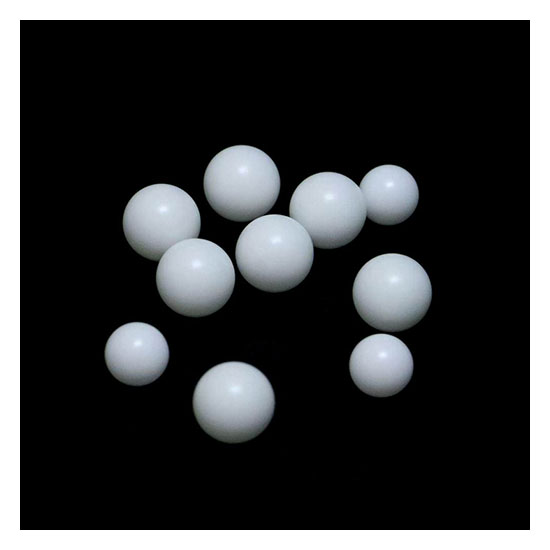

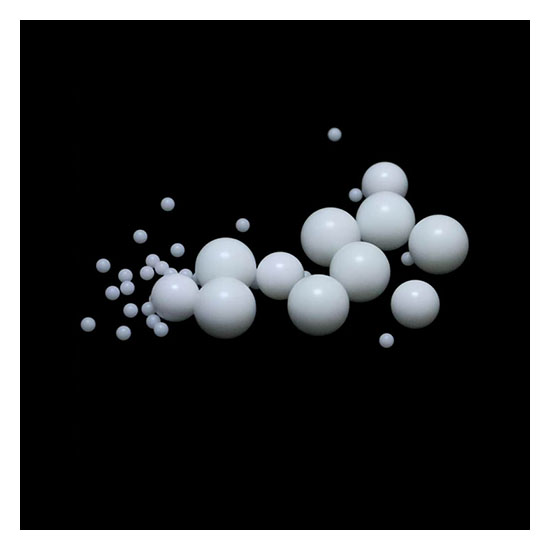

Product description: High precision ABS solid ball (ABS ball) is made of Acrylonitrile-Butadiene-Styrene(ABS) material by injection moulding and high precision grinding,, the surface smooth and clean. Used in various parts, testing, machine industry.
Packing: in standard carton
MOQ: 100,000 pieces
Note: we accept customized the ball color, ball weight, ball size and package modality
Payment: T/T or L/C at sight
Acrylonitrile-Butadiene-Styrene(ABS) data sheet:
Properties | Typical Value | Unit | Test Method |
Density of ABS | 1.04 | g/cm3 | ASTM D792 |
Shrinkage | 0.3~0.8 | % | ASTM D955 |
Water absorption | 0.2~0.45 | % | ASTM D570 |
Flammability class | HB | Class | UL94 |
Tensile strength | 50 | MPa | ASTM D638 |
Elongation at break | 20 | % | ASTM D638 |
Flexural strength | 70 | MPa | ASTM D790 |
Flexural Modulus of elasticity | 1.76~2.94 | GPa | ASTM D790 |
Compression strength | 70 | MPa | ASTM D790 |
Hardness Rockwell | 65~109 | R | ASTM D785 |
Heat deflection temperature | 87 | °C | ASTM D648 |
Max. working temperature | 100 | °C | UL746B |
Thermal conductivity | 0.16~0.29 | W | ASTM C177 |
Dielectric Constant | 2.4~3.8 | - | ASTM D150 |
Dielectric loss angle tangent | 0.009 | - | ASTM D150 |
The above data are typical laboratory average. They are intended to serve as guides only. | |||
